- ASROCK
- Nou
Preț
€323 18 / 632 09 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/mb/AMD/X870E%20Challenger%20WiFi/#Specification

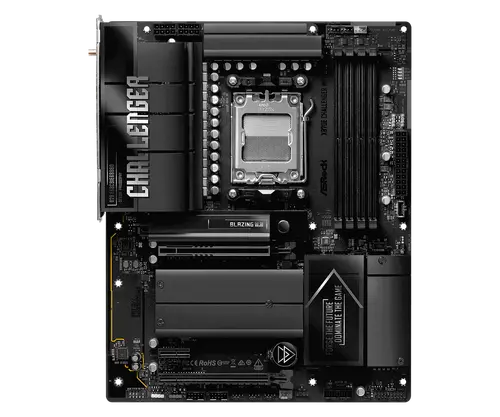

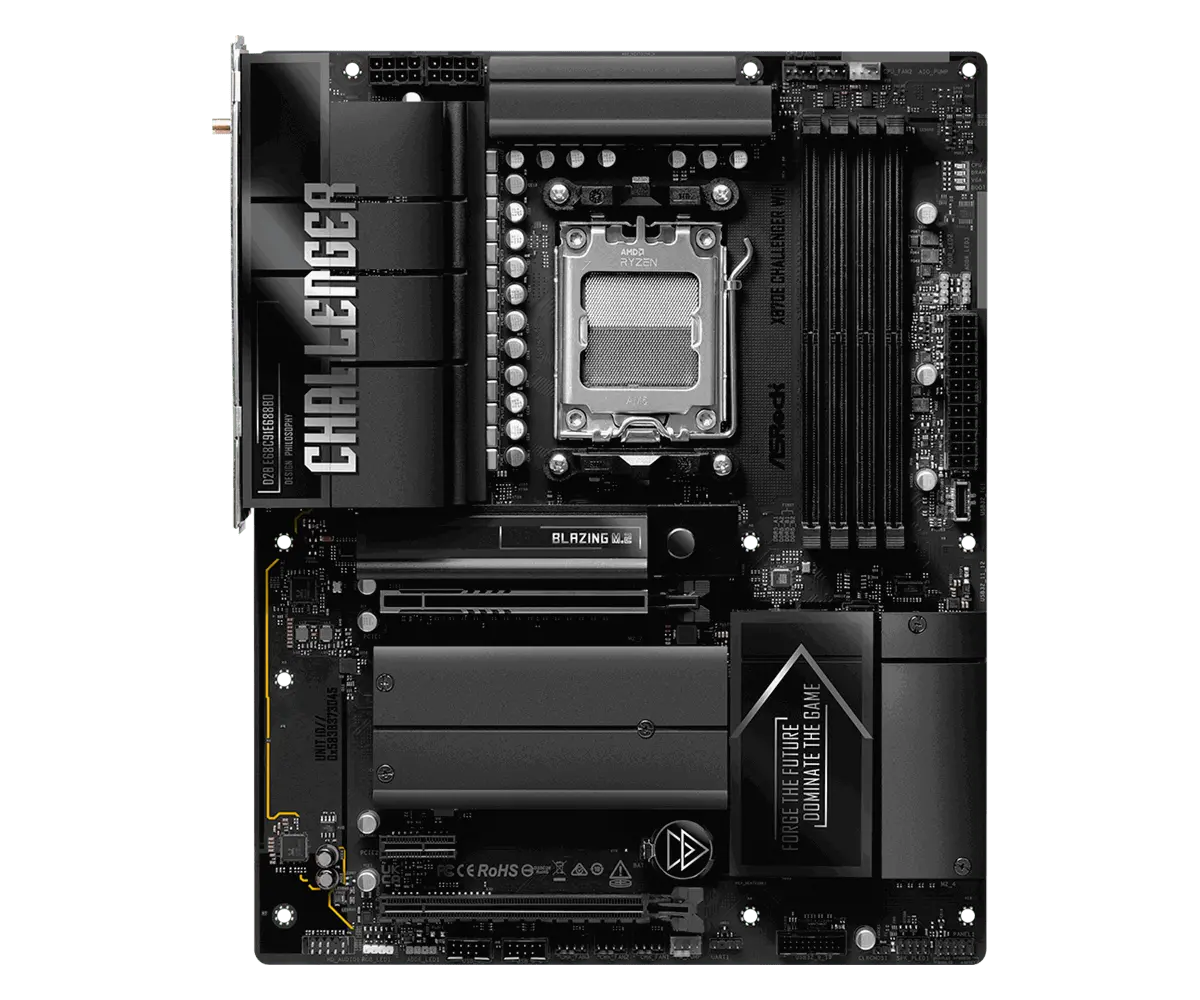

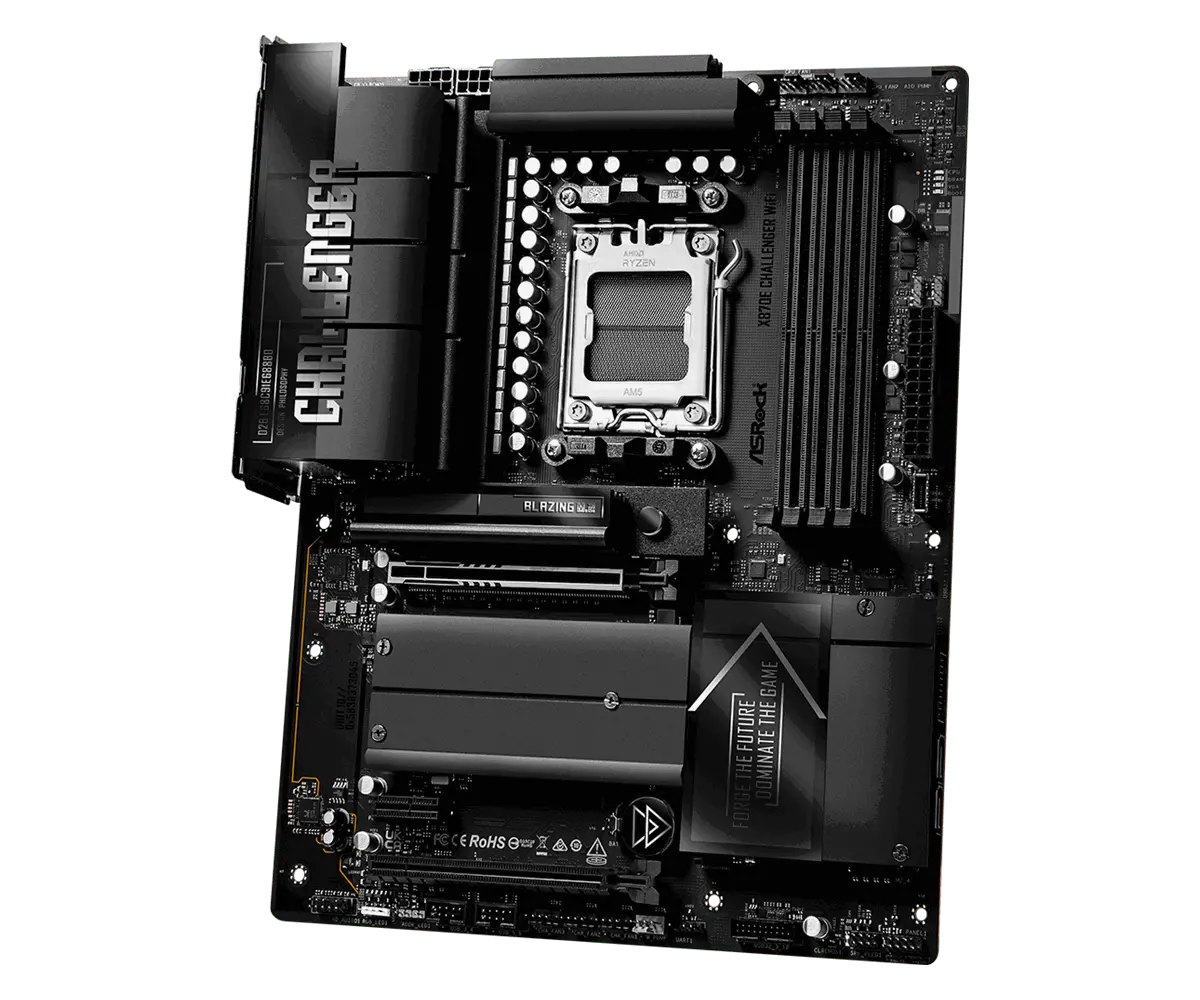

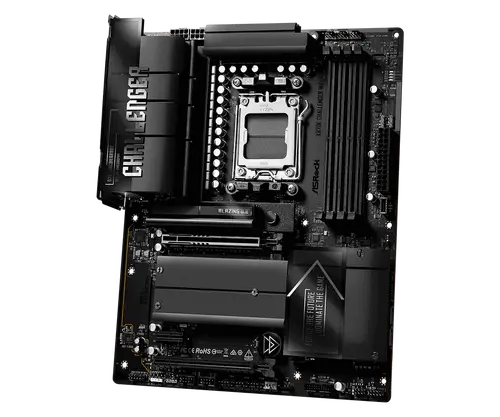

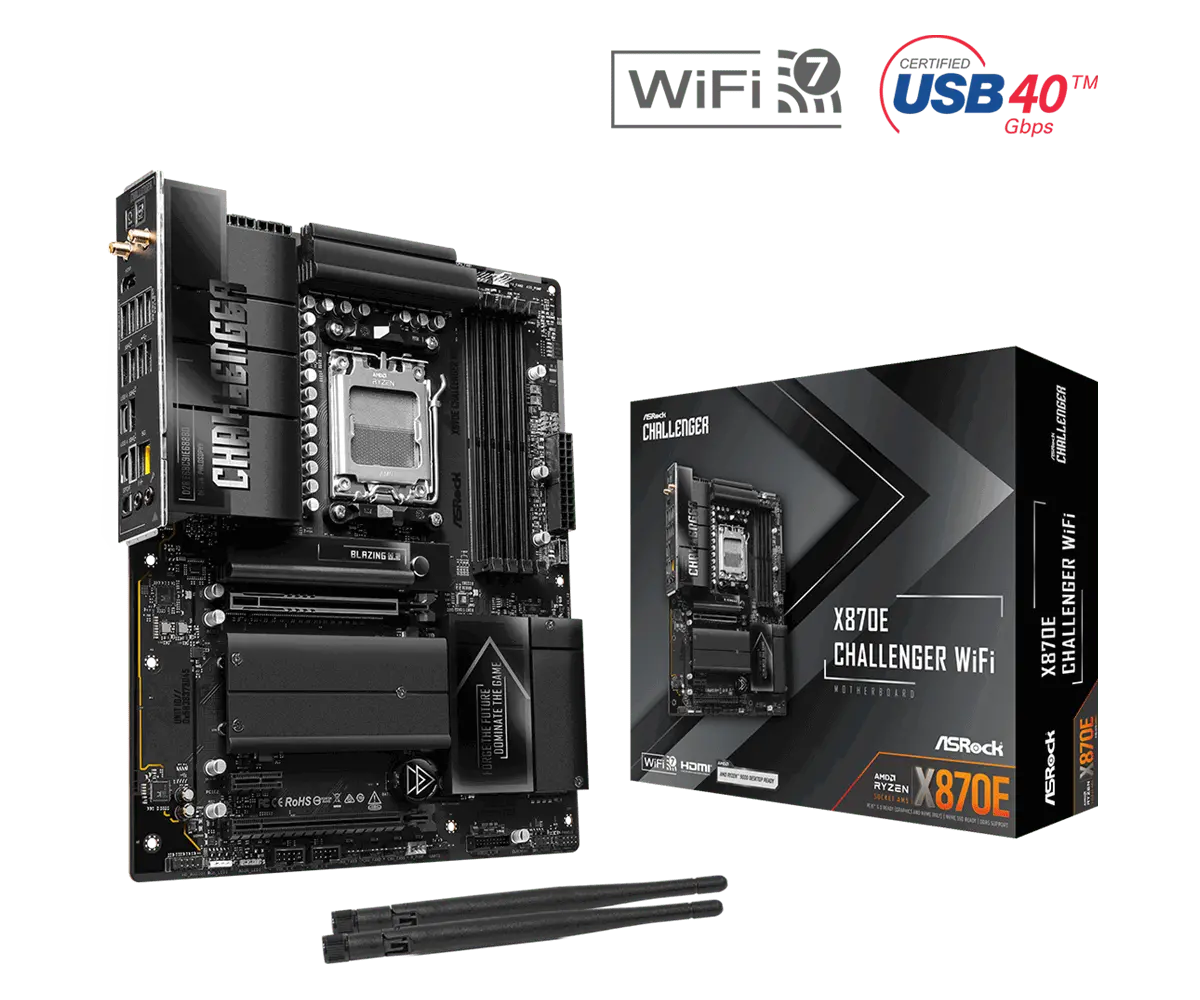

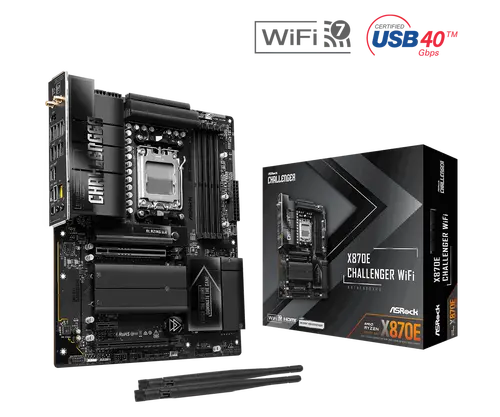

Model
X870E Challenger WiFi
Socket
AMD AM5
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD X870E
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
* Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 2 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

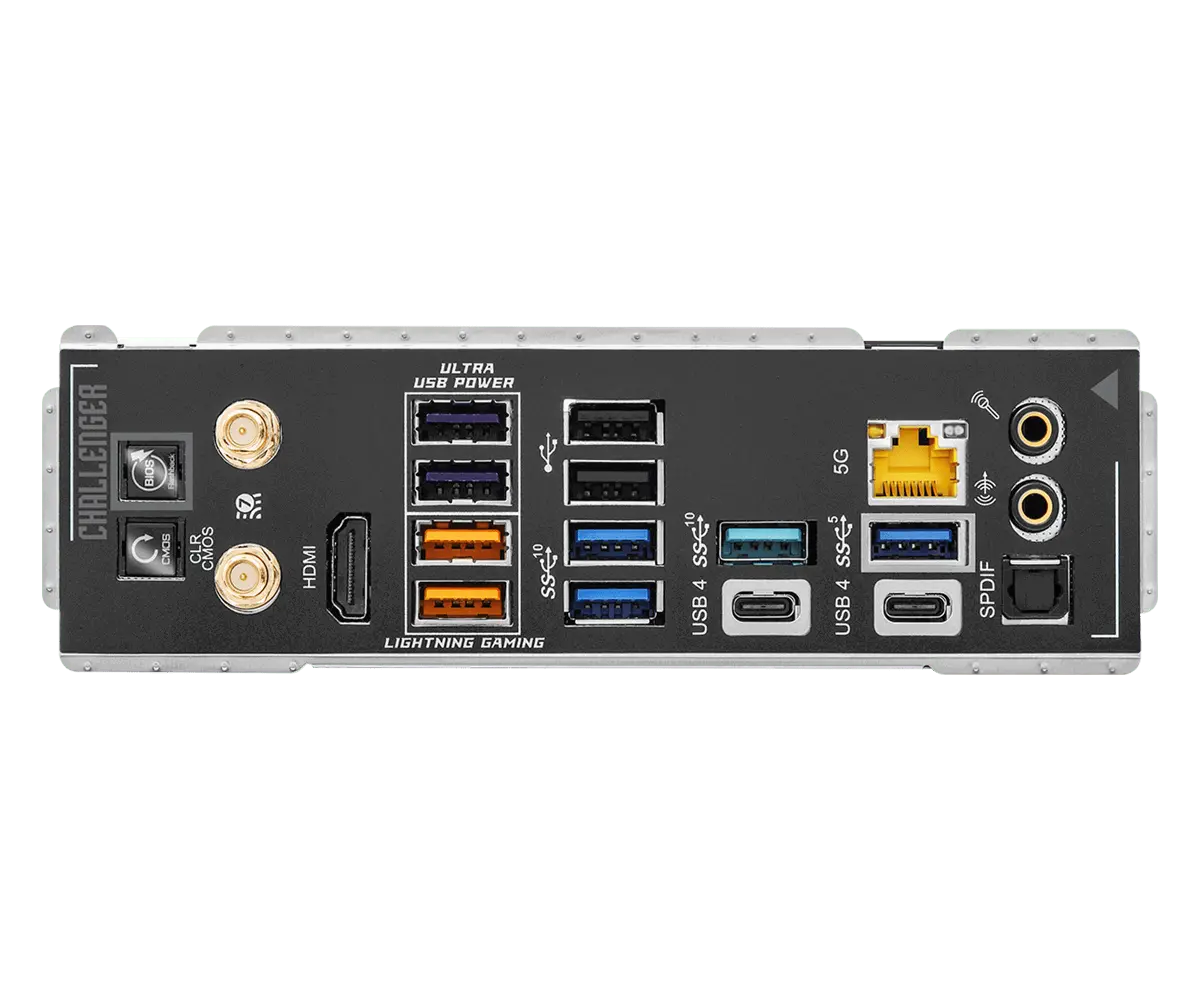

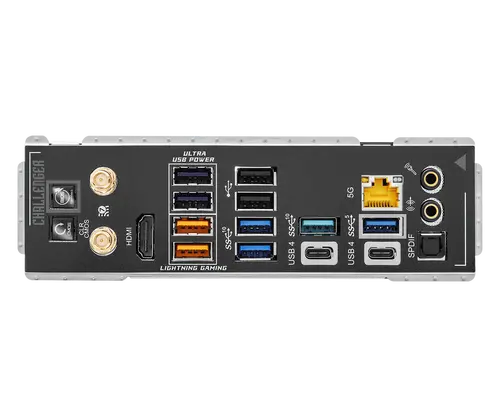

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)
5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
USB
CPU:
- 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7))
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56))
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connectors
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126
Wireless
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
Bluetooth
Supports Bluetooth 5.4
BIOS
512Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX, 8 Layer PCB, 2oz Copper PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Other
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield Ultrafast Gaming
- 5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Dimensions
30.5 cm x 24.4 cm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | AMD AM5 |
| Vendor_url | https://www.asrock.com/mb/AMD/X870E%20Challenger%20WiFi/#Specification |
| Chipset | AMD X870E |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) |
| Form Factor | ATX, 8 Layer PCB, 2oz Copper PCB |
| Audio | Nahimic Audio |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | 1 x Optical SPDIF Out Port |
| Rear panel I/O | 1 x Line Out Jack (Gold Audio Jack) |
| Rear panel I/O | 1 x Microphone Input Jack (Gold Audio Jack) |
| Rear panel I/O | 2 x USB 2.0 Ports |
| Rear panel I/O | 2 x USB4 Type-C Ports (40 Gb/s) |
| Rear panel I/O | 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) |
| Rear panel I/O | 1 x Clear CMOS Button |
| Rear panel I/O | 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.) |
| LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s |
| LAN | Realtek RTL8126 |
| Model | X870E Challenger WiFi |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode |
| Expansion Slots | - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode |
| Dimensions | 30.5 cm x 24.4 cm |
| Wireless | 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | Supports MU-MIMO |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module |
| Wireless | Supports Bluetooth 5.4 |
| Wireless | Supports 2.4GHz/5GHz/6GHz frequency band |
| Wireless | Supports 160MHz channel bandwidth with 6GHz frequency band |
| Wireless | Supports IEEE 802.11a/b/g/n/ac/ax/be |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Graphics | - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Other | Superb Productivity |
| Other | Rock-Solid Durability |
| Other | EZ Update |
| Other | EZ Troubleshooter |
| Other | - ASRock Auto Driver Installer |
| Other | - PCIe Gen5 (Graphics, M.2) |
| Other | - Dual Channel DDR5 |
| Other | - USB4 Type-C Ports (40 Gb/s) |
| Other | - Server-Grade Low-Loss PCB |
| Other | - 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor |
| Other | - Flexible Integrated I/O Shield Ultrafast Gaming |
| Other | - 5G LAN, 802.11be Wi-Fi 7 Module |
| Other | - ASRock Lightning Gaming Ports |
| Other | - BIOS Flashback Button |
| Other | - ASRock Post Status Checker |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | * Chipset: |
| Bluetooth | Supports Bluetooth 5.4 |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Connectors | 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| USB | - 2 x USB4 Type-C (Rear) |
| USB | - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) |
| USB | - 6 x USB 2.0 (2 Rear, 4 Front) |
| USB | - 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)) |
| USB | - 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
